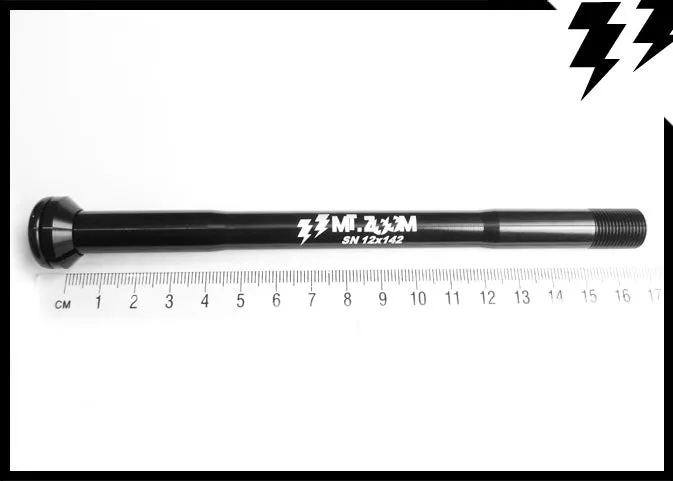

The MT ZOOM Syntace style thru axle is simple, light, strong and excellent value. The 12mm x 142mm rear axle standard.

This style is the Syntace standard with the conical clamp face to fit into the countersunk recess in the frame (not the flat faced interface). Present on many Specialized, Canyon, Cannondale, BMC, BH frames.

At only 39g – drop some weight from your wheels. Length from base of inner conical clamp to end of thru axle: 159mm

2 year warranty

[split]

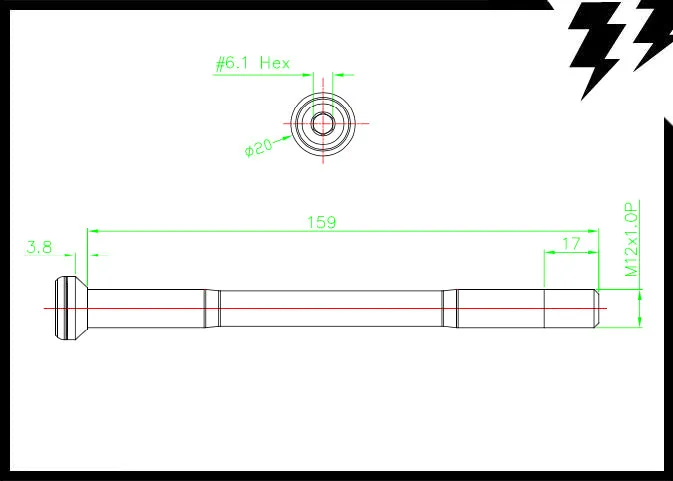

Key technical measurements:

Inset head/washer
Length from inner washer to end of thru axle: 159mm

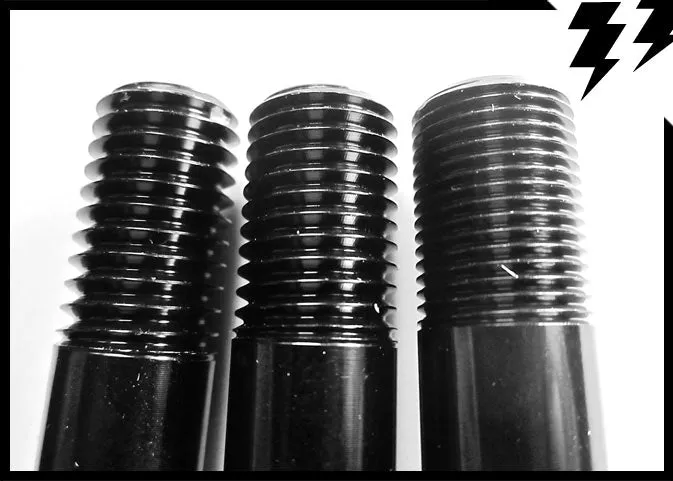

Thread pitch 1mm (the narrowest of the 3 options in the “thread picture”)
Thread area length: 17mm
Inner axle maximum width: 12mm
Product Code: T9

[split]

The 1.5mm washer helps protect the paint on your frame/for drop out - its use is optional, removing it gives 1.5mm extra length to the axle.

Uses 6mm hex allen key for smooth secure opening/closing (Max recommended torque 10NM).
