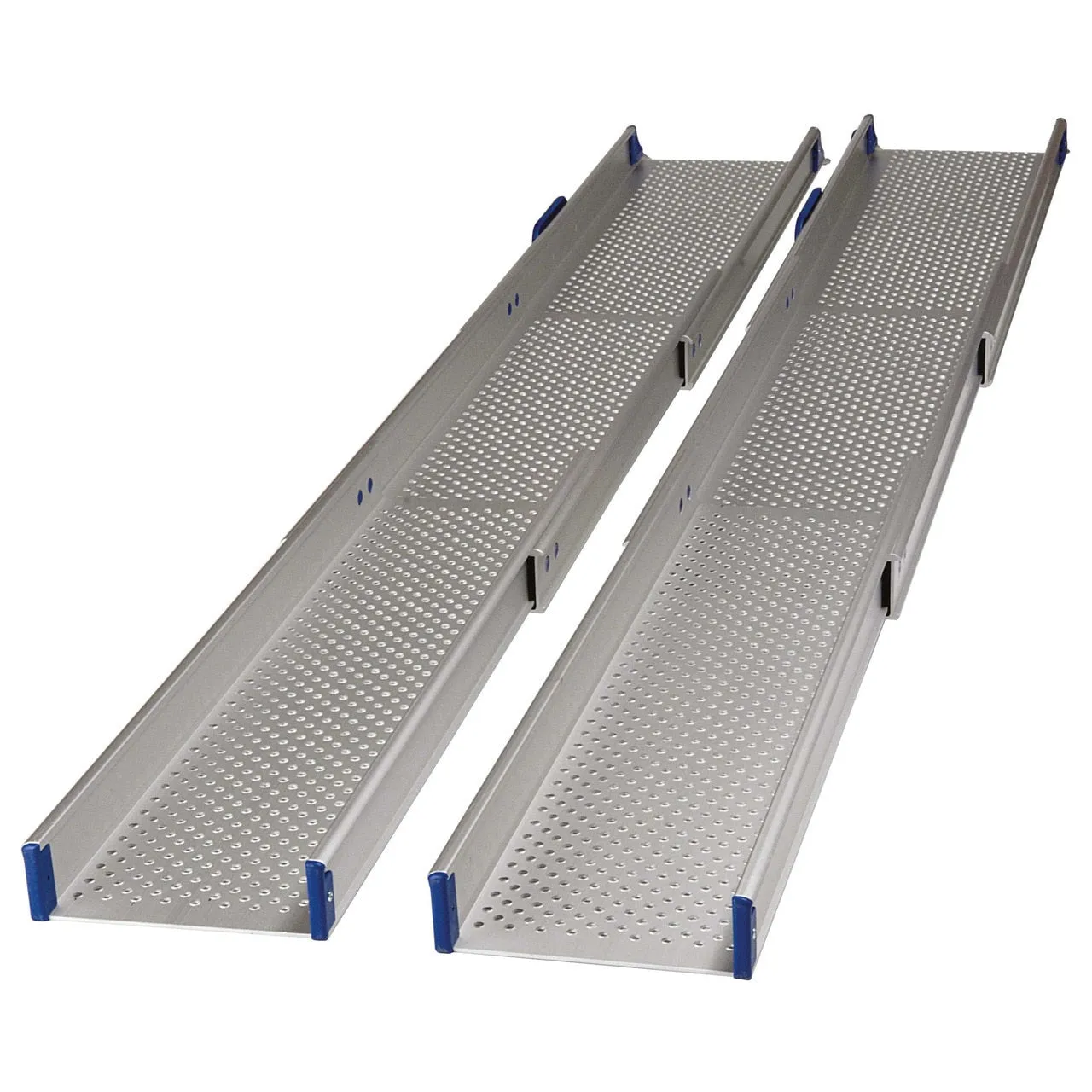

The most adjustable ramp in the range, these ramps extend up to nearly 3m, yet are extremely compact for easy storage in a vehicle. Available in 2 or 3 section versions to suit your storage requirements.
Finding The Correct Gradient
| 1:6 (10˚) | Acceptable in some cases for assisted access and powered wheelchairs | |
| 1:8 (8˚) | A good balance between gradient and space use, suited for events etc. | |
| 1:12 (5˚) | Often required by social services/local authorities. Minimum required Building Regs Doc M for installed ramps. | |
| 1:15 (4˚) | Sometimes required by social services/local authorities for independent access. |
Finding The Correct Length
| Step height / level difference (up to) | Length at 1:6 | Length at 1:8 | Length at 1:12 |
|---|---|---|---|
| 10cm (4") | 60cm (2ft) | 80cm (2ft 8") | 120cm (4ft) |
| 15cm (6") | 90cm (3ft) | 120cm (4ft) | 180cm (6ft) |
| 20cm (8") | 120cm (4ft) | 160cm (5ft 4") | 240cm (8ft) |
| 25cm ( 10") | 150cm (5ft) | 200cm (6ft 8") | 300cm (10ft) |
| 30cm (1") | 180cm (6ft) | 240cm (8ft) | 360cm (12ft) |
| 45cm (1ft 6") | 270cm (9ft) | 360cm (12ft) | 540cm (18ft) |
| 60cm (2ft) | 360cm (12ft) | 480cm (16ft) | 720cm (24ft) |
Versatile ramps that can be used at any length
Extremely compact storage

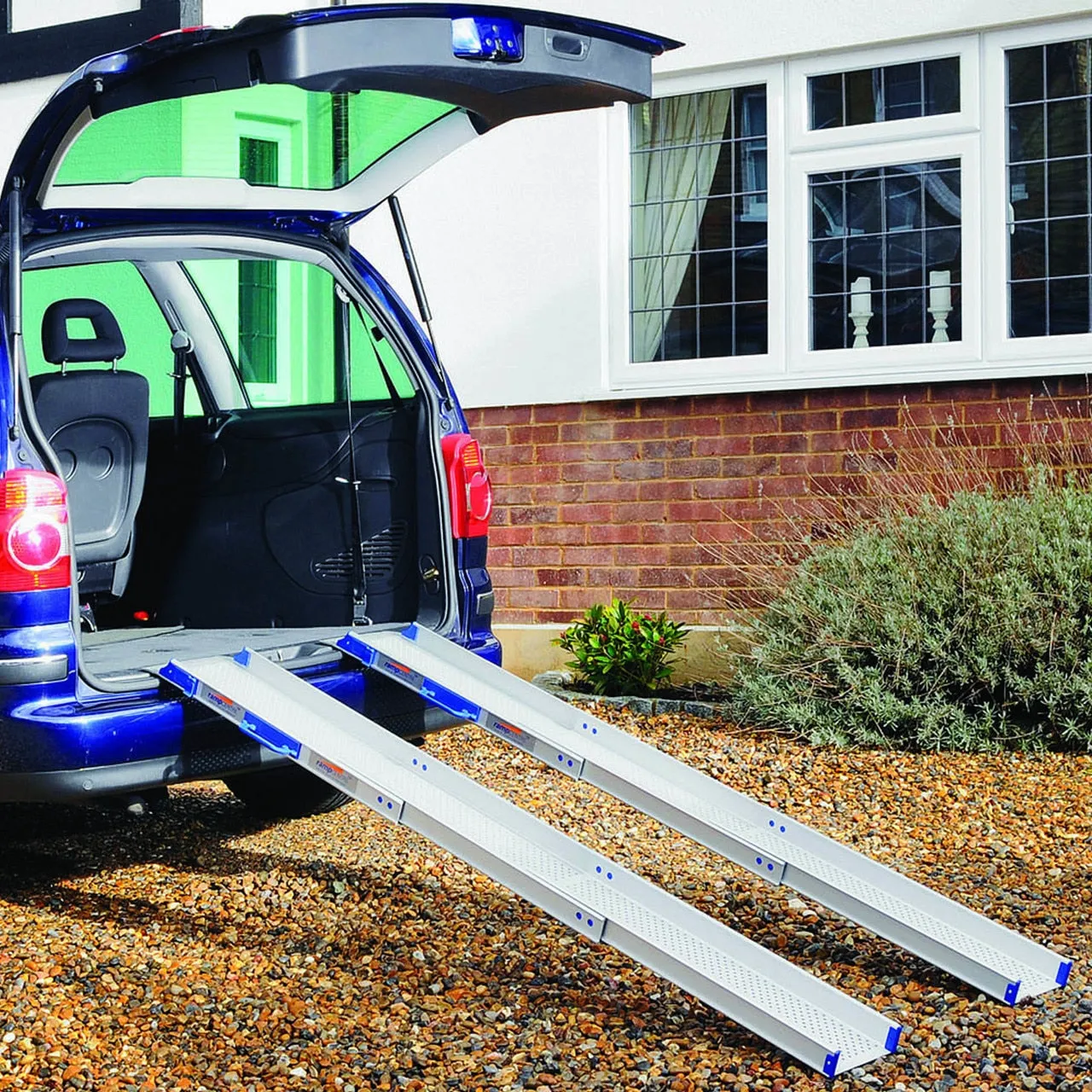

Ideal for vehicle access. Long version great for 4×4's
Uniquely high capacity and generous channel widths

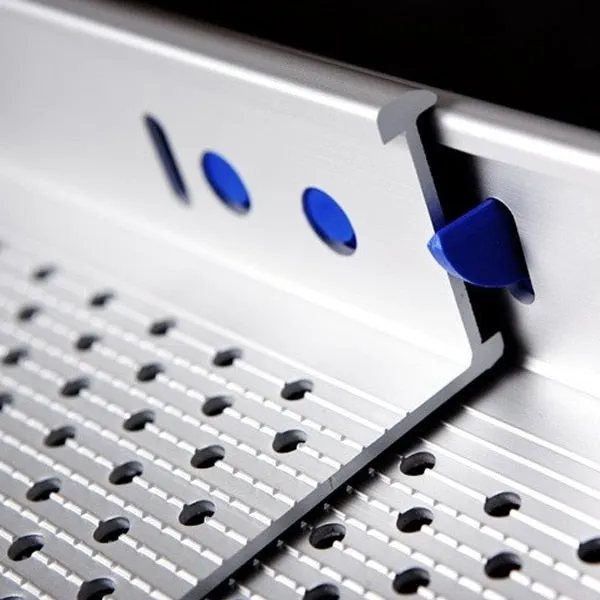

Silent telescopic mechanism with strong safety clip to prevent opening when stored.
Ultralight Telescopic Size Guide
| Code (pair) | Length Max | Length Min | Width (internal channel) | Capacity pair kg (st) | Weight kg (lbs) each half | Stored Dimensions l x w x d cm (inches) |
|---|---|---|---|---|---|---|
| PT12-2 | 120cm (3ft 11") | 75cm (2ft 5") | 19cm (8ins) | 400 (63) | 3.6 (8) | 75 x 24.5 x 6 (29 x 10 x 2) |
| PT20-2 | 202cm (6ft 8") | 117cm (3ft 10") | 19cm (8ins) | 300 (47) | 5.8 (13 ) | 117 x 24.5 x 6 (46 x 10 x 2) |
| PT20-3 | 199cm (6ft 6") | 87cm (2ft 10") | 18cm (7ins) | 300 (47) | 6.1 (14) | 87 x 24.5 x 7 (31 x 10 x 3) |
| PT29-3 | 288cm (9ft 5") | 117cm (3ft 10") | 18cm (7ins) | 250 (39) | 8.2 (18) | 117 x 24.5 x 7 (46 x 9 x 3) |
